Containers Unit Load Device

A Unit Load Device (ULD) is a pallet or container used to load luggage, freight and mail onto a wide-body aircraft or a specific narrow-body aircraft. It allows a large quantity of cargo to be bundled into one single unit.

This leads to fewer units to load thus saving time and effort for ground crews, and it helps preventing delays. Each ULD has its own packing list (or manifest) so that its contents can be tracked.

Containers

10 ft-Container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F
Dimensions outside (LxWxH): 125 x 96 x 96 in / 318 x 244 x 244 cm
Dimensions inside (LxWxH): 120 x 91 x 94 in / 306 x 230 x 240 cm
Usable volume: 529 Cu.ft / Ca 15 m3
Standard weight (dep. manufact.): 570-705 lbs / 260-320 kg
Max gross weight: 15000 lbs / 6804 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

10 ft-Container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F
Dimensions outside (LxWxH): 125 x 96 x 96 in / 318 x 244 x 244 cm
Dimensions inside (LxWxH): 120 x 91 x 94 in / 306 x 230 x 240 cm
Usable volume: 529 Cu.ft / Ca 15 m3
Standard weight (dep. manufact.): 725-1025 lbs / 330-465 kg
Max gross weight: 15000 lbs / 6804 kg
Hanging load: 5510lbs / 2500 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

Container for A320 / A321

Loadable in: A320-200, A321-100
Dimensions outside (LxWxH): 61 x 60 x 45 in / 156 x 153 x 114 cm
Dimensions inside (LxWxH): 57 x 57 x 44 in / 146 x 144 x 111 cm
Dimensions of shell top outside (LxW): 96 x 60 in / 244 x 153 cm
Dimensions of shell top inside (LxW): 94 x 57 in / 142 x 103 cm
Width of door opening (W x H): 56 x 41 in / 142 x 103 cm
Usable volume: 120 Cu.ft / Ca 3.4 m3
Standard weight: 187 lbs / 85 kg
Max gross weight: 2500 lbs / 1134 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

Container for A320 / A321 with door (lockable)

Loadable in: A320-200, A321-100
Dimensions outside (LxWxH): 61 x 60 x 45 in / 156 x 153 x 114 cm
Dimensions inside (LxWxH): 57 x 57 x 44 in / 146 x 144 x 111 cm
Dimensions of shell top outside (LxW): 96 x 60 in / 244 x 153 cm
Dimensions of shell top inside (LxW): 94 x 57 in / 142 x 103 cm
Width of door opening (W x H): 56 x 41 in / 142 x 103 cm
Usable volume: 120 Cu.ft / Ca 3.4 m3
Standard weight: 187 lbs / 85 kg
Max gross weight: 2500 lbs / 1134 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

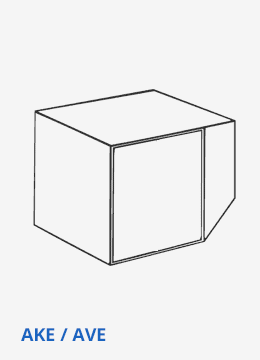

Container LD3

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions outside (LxWxH): 61 x 60 x 64 in / 156 x 153 x 163 cm
Dimensions inside (LxWxH): 57 x 57 x 63 in / 146 x 144 x 160 cm
Dimensions of shell top outside (LxW): 79 x 60 in / 201 x 153 cm
Dimensions of shell top inside (LxW): 77 x 56 in / 195 x 142 cm
Width of door opening (W x H): 59 x 56 in / 150 x 142 cm
Usable volume: 134 Cu.ft / Ca 3.8 m3
Standard weight: 220 lbs / 100 kg
Max gross weight: 3500 lbs / 1588 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

Valuable Cargo Container LD3 (Hanging Garment compatible)

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions outside (LxWxH): 61 x 60 x 64 in / 156 x 153 x 163 cm
Dimensions inside (LxWxH): 57 x 57 x 63 in / 146 x 144 x 160 cm
Dimensions of shell top outside (LxW): 79 x 60 in / 201 x 153 cm
Dimensions of shell top inside (LxW): 77 x 56 in / 195 x 142 cm
Width of door opening (W x H): 59 x 56 in / 150 x 142 cm
Usable volume: 134 Cu.ft / Ca 3.8 m3
Standard weight: 220 lbs / 100 kg
Max gross weight: 3500 lbs / 1588 kg
Max. topload: 605 lbs / 275 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

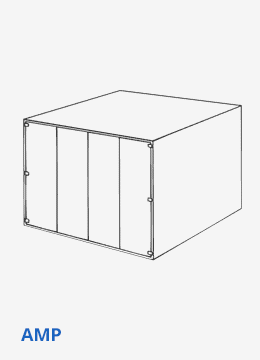

AMP-Container (Hanging Garment compatible)

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions outside (LxWxH): 125 x 96 x 63 in / 318 x 244 x 161 cm
Dimensions inside (LxWxH): 120 x 88 x 61 in / 305 x 223 x 154 cm
Width of door opening (W x H): 114 x 59 in / 289 x 149 cm
Usable volume: 370 Cu.ft / Ca 10.5 m3
Standard weight: 670 lbs / 305 kg
Max gross weight: 15000 lbs / 6804 kg
Max. topload: 4400 lbs / 2000 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg

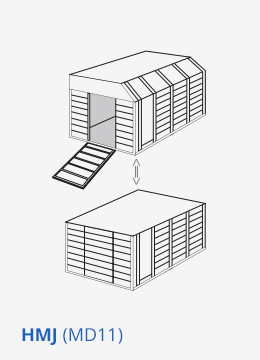

Tripple horse container

Loadable in: MD11, B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F
Dimensions outside (LxWxH): 125 x 96 x 93 in / 318 x 244 x 235 cm
Dimensions inside (LxWxH): 92 x 74 x 91 in / 234 x 188 x 232 cm
Pallet size (LxW): 125 x 96" / 318 x 244 cm
Ramp (LxW): 69 x 41 in / 175 x 105 cm
Groom compartment (LxW): 92 x 43 in / 234 x 110 cm
Capacity: 1-3 horses
Standard weight: 1770 lbs / 805 kg
Max gross weight: 6610 lbs / 3000 kg

Tripple horse container

Loadable in: B747-200F, B747-200 SF, B747-400 ERF, B767-300 F, A300 F
Dimensions outside (LxWxH): 125 x 96 x 93 in / 318 x 244 x 235 cm
Dimensions inside (LxWxH): 92 x 75 x 91 in / 234 x 188 x 232 cm
Pallet size (LxW): 125 x 96" / 318 x 244 cm
Ramp (LxW): 67 x 41 in / 171 x 105 cm
Rear ramp (LxW): 87 x 67 in / 220 x 171 cm
Groom compartment (LxW): 92 x 43 in / 234 x 110 cm
Capacity: 1-3 horses
Standard weight: 2270 lbs / 1030 kg
Max gross weight: 7230 lbs / 3280 kg

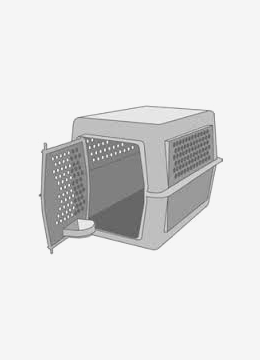

Pet kennel

Size 1 (LxWxH): 24 x 18 x16 in / 60 x 45 x 40 cm
Weight: 9 lbs / 4 kg
Max animal weight: 33 lbs / 15 kg
Size 2 (LxWxH): 32 x 22 x 22 in / 80 x 55 x 55 cm
Weight: 13 lbs / 6 kg
Max animal weight: 66 lbs / 30 kg
Size 3 (LxWxH): 40 x 26 x28 in / 100 x 65 x 70 cm
Weight: 29 lbs / 13 kg
Max animal weight: 110 lbs / 50 kg
Size 4 (LxWxH): 49 x 30 x 33 in / 125 x 75 x 85 cm
Weight: 49 lbs / 22 kg
Max animal weight: 132 lbs / 60 kg

LD9 – heat/cool

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Base dimensions (LxW): 125 x 88 in / 318 x 224 cm
Height: 64 in / 162 cm
Volume: 274 cu.ft / 7.75 m3
Max. internal dimensions (LxWxH): 98 x 79 x 54 in / 250 x 202 x 137 cm
Tare weight: 1753 lbs / 796 kg
Max. load: 11524 lbs / 5237 kg
Max gross weight: 13300 lbs / 6033 kg
Dry ice bunker: 704 lbs / 320 kg
Temp. operating range: -4 to +86 F / -20 C to +30 C
Batteries: fix installed

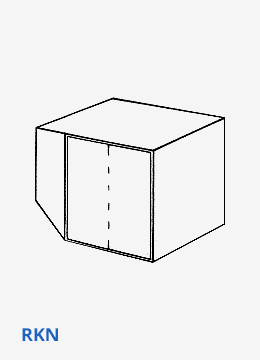

LD3 – heat/cool

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-400 ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Base dimensions (LxW): 78.7 x 60.4 in / 200 x 153 cm
Height: 64 in / 162 cm
Volume: 49 cu.ft / 1.65 m3
Max. internal dimensions (LxWxH): 48 x 46 x 46 in / 122 x 117 x 117 cm
Tare weight: 979 lbs / 444 kg
Max. load: 2522 lbs / 1144 kg
Max gross weight: 3500 lbs / 1588 kg
Dry ice bunker: 264 lbs / 120 kg
Temp. operating range: -4 to +86 F / -20 C to +30 C
Batteries: fix installed

Container LD3

Loadable in: B767-300 F
Dimensions of base (LxWxH): 96 x 60 x 64 in / 244 x 153 x 162 cm
Dimensions of shell top (LxW): 125 x 59 in / 317 x 149 cm
Width of door opening (W x H): 91 x 58 in / 230 x 147 cm
No. of loading beams: 6
Usable volume: 229 Cu.ft / Ca 6.5 m3
Standard weight: 270-280 lbs / 123-127 kg
Max gross weight: 5399 lbs / 2449 kg
Max load of the internal tie-down points: 2000 lbs / 907 kg
