Pallets Unit Load Device

A Unit Load Device (ULD) is a pallet or container used to load luggage, freight and mail onto a wide-body aircraft or a specific narrow-body aircraft. It allows a large quantity of cargo to be bundled into one single unit.

This leads to fewer units to load thus saving time and effort for ground crews, and it helps preventing delays. Each ULD has its own packing list (or manifest) so that its contents can be tracked.

Pallets

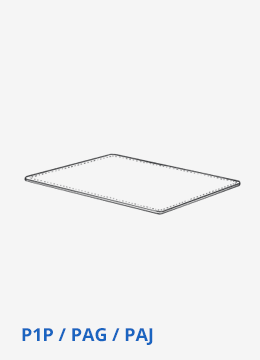

Standard pallet 88"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 88 in / 318 x 224 cm
Usable loading area (LxW): 120 x 83 in / 304 x 210 cm
Standard weight incl. pallet net: 253 lbs / 115 kg
Max gross weight: 15000 lbs / 6804 kg

Pallet with side extensions 88"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 88 in / 318 x 224 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm
Standard weight incl. pallet net: 368 lbs / 167 kg
Max gross weight: 15000 lbs / 6804 kg
Capacity per extension: 1320 lbs / 600 kg

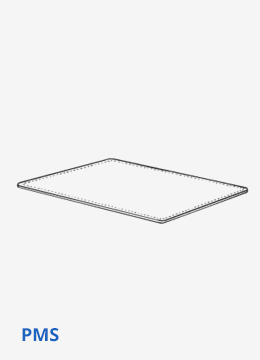

Standard pallet 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Usable loading area (LxW): 120 x 91 in / 304 x 230 cm
Standard weight incl. pallet net: 253 lbs / 115 kg
Max gross weight: 15000 lbs / 6804 kg

Pallet with side extensions 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm
Standard weight incl. pallet net: 368 lbs / 167 kg
Max gross weight: 15000 lbs / 6804 kg
Capacity per extension: 1320 lbs / 600 kg

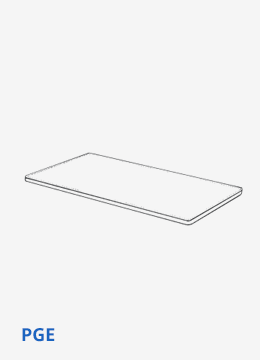

Pallet without side extensions

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 60.4 in / 318 x 153 cm
Usable loading area (LxW): 120 x 55 in / 304 x 139 cm
Standard weight incl. pallet net: 339 lbs / 154 kg
Max gross weight: 7000 lbs / 3175 kg

Pallet with side extensions

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 60.4 in / 318 x 153 cm
Usable loading area (LxW): 120 x 55 in / 304 x 139 cm
Dimensions extensions (LxW): 19 x 22 in / 48 x 56 cm
Standard weight incl. pallet net: 339 lbs / 3175 kg
Max gross weight: 7000 lbs / 6804 kg
Capacity per extension: 770 lbs / 350 kg

Pallet with side extensions

Loadable in: A320-200, A321-100
Dimensions (LxW): 61.5 x 60.4 in / 156 x 153 cm
Standard weight incl. pallet net: 175 lbs / 80 kg
Max gross weight: 3500 lbs / 1588 kg
Max gross weight A320: 2500 lbs / 1134 kg
Capacity per extension: 770 lbs / 350 kg
Max loading height: 64 in / 162 cm
Max loading height A320: 46 in / 117 cm

Q-Pallet

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main Deck only)
Dimensions (LxW): 96 x 55 in / 244 x 140 cm
Usable loading area (LxW): 91 x 50 in / 230 x 126 cm
Standard weight incl. pallet net: 175 lbs / 80 kg
Max gross weight: 4000 lbs / 1814 kg

Heavy Duty Pallet 96"

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
Dimensions (LxW): 125 x 96 in / 318 x 244 cm
Usable loading area (LxW): 120 x 91 in / 304 x 231 cm
Standard weight incl. pallet net: 360 lbs / 163 kg
Max gross weight: 15000 lbs / 6804 kg

20 ft-pallet

Loadable in: MD11, B747 F, B747-200 SF, B747-400 ERF
Dimensions (LxW): 235.8 x 96 x 2 in / 608 x 244 x 6 cm
Usable loading area (LxW): 233 x 91 in / 592 x 230 cm
Standard weight without pallet net: 1100 lbs / 500 kg
Max gross weight: 25000 lbs / 11340 kg

16 ft-pallet

Loadable in: MD11, B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)
Dimensions (LxW): 196 x 96 x 2 in / 498 x 244 x 6 cm
Usable loading area (LxW): 191 x 91 in / 485 x 230 cm
Standard weight without pallet net: 880 lbs / 400 kg
Max gross weight: 25000 lbs / 11340 kg

Car Rack (in combination with PZA)

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)
Dimensions (LxW): 132 x 81 x 5 in / 335 x 205 x 13 cm
Standard weight: 415 lbs / 190 kg
Capacity: 5500 lbs / 2500 kg
Max wheel base: 91-124 in / 230 – 314 cm

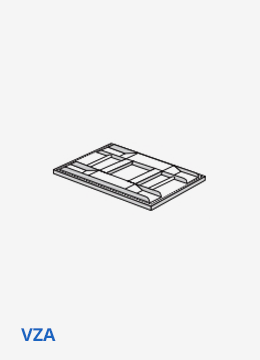

Car Rack

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)
Dimensions (LxW): 91 x 58 x 61 in / 230 x 148 x 154 cm
Standard weight per pair: 285 lbs / 130 kg
Max gross weight pallet: 20500 lbs / 9300 kg
Max gross weight car: 5500 lbs / 2500 kg
Max wheel base: 125 in / 318 cm

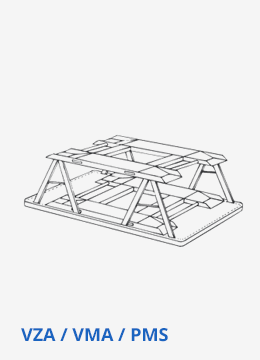

Car Rack

Loadable in: MD11, B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)
Dimensions (LxW): 90 x 47 x 40 in / 230 x 120 x 102 cm
Standard weight per pair: 176 lbs / 80 kg
Max gross weight car: 5500 lbs / 2500 kg
Max wheel base: 125 in / 318 cm

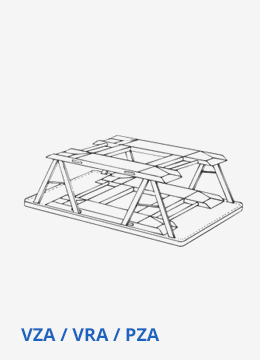

Car Rack Combination PZA

Loadable in: B747-200 F, B747-200 SF, B747-400 ERF (Main deck only)

Car Rack Combination PMS

Loadable in: MD11, B747-200F, B747-200 SF, B747-400, B747-ERF, B767-300 F, B777-200, A300 F, A300-600, A330-300, A340-200, A340-300, A340-600
